High-strength steel scaffolding plank with anti-slip surface and hot-dip galvanizing for durable construction walkways

MOQ : 100

Price : $450-2500

Payment Terms : T/T

Supply Ability : excellent

Delivery Time : 7-14 work days

Life Span : Around 30~50 Year

Drawing Design : AUTOCAD, SOLIDWORKS,

Design Parameter : Wind Load,Snow Load And Earthquake

Foundationrequirement : Concrete foundation recommended

Assemblymethod : Bolted or welded connections

Usage : Industrial, commercial, residential buildings

Design Load : Wind, Snow, Seismic

Structure Type : Portal frame

Material : High-strength steel

Size : Customized

Dimensions : Customizable (length, width, height)

Walltype : Steel panels or composite panels

Contact Now

High Altitude Work Scaffolding Metal Tread Plate

Scaffolding metal plank is a core safety component for modern construction aerial work, replacing traditional bamboo and wood planks to provide a stable and reliable horizontal operation platform for workers.

Key Features

Anti-slip, fireproof and flame-retardant properties
Hook-on type design prevents side slip and overturning
Professional anti-corrosion treatment with strong corrosion resistance
Self-contained reinforcing rib design ensures high rigidity and no easy deformation
No burrs or sharp edges on edges for safe operation
Suitable for various scaffolding systems with strong versatility

Technical Parameters

Load Capacity: Uniform load 2.0-2.5kN/m², concentrated load ≥1kN, in line with GB 51210-2016 and EN 12811-1 standards

Anti-slip Performance: Perforated type opening rate 10%-15%, patterned type friction coefficient ≥0.8

Anti-corrosion Index: Hot-dip galvanizing layer thickness ≥85μm, salt spray test ≥96 hours without red rust

Processing Technology: Automatic cutting → cold press forming → precision welding → surface anti-corrosion treatment (hot-dip galvanizing/pre-galvanizing/powder coating)

Certification & Patent: Passed ISO 9001 quality system certification, has multiple patents for anti-slip structure and hook design, in line with OSHA 1926.451 (USA) and BS 1139 (UK) standards

Power/Voltage: This product is a passive component, no relevant parameters

Product Specifications

Material	Steel
Feature	High Strength, Easily Assembled, Reusable
Design Style	Traditional
Project Solution Capability	3D model design, graphic design
Brand Name	Shunyao supply chain steel frame
Color	Customer Requirements
Function	Construction Concrete Support
Application	Concrete formwork, Office Building, Building Construction
Warranty	2 Years
After-sale Service	Online Technical Support, Onsite Installation
Place of Origin	Chengdu, China
Size	Customers
Performance	High Strength Scaffolding System

Product Images

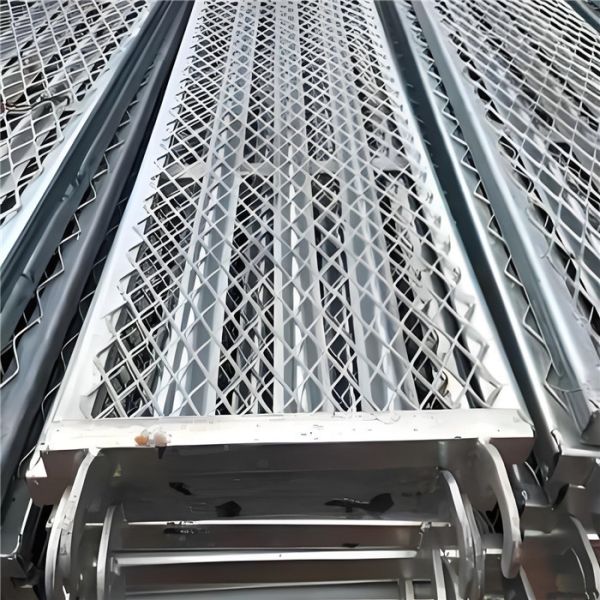

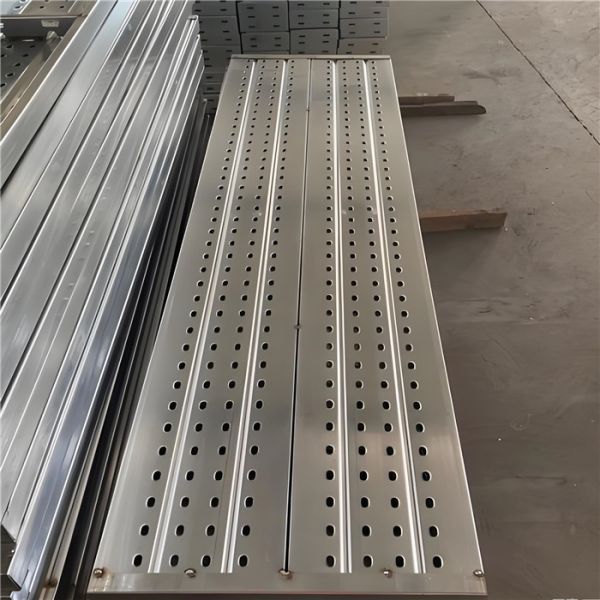

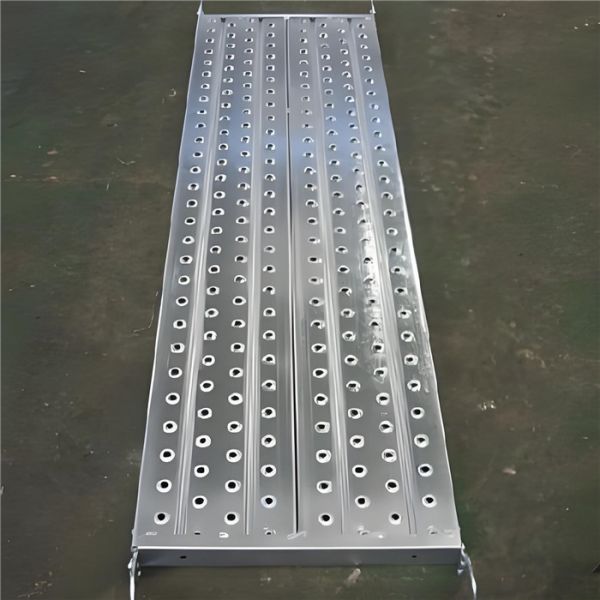

High-strength steel scaffolding plank with anti-slip surface and hot-dip galvanizing for durable construction walkways
